Sprayers And Mini Sprinklers

Tornado Mist Sprayer

Vortex Flow Non Clogging Mist Sprayer

• Designed without a bridge, to prevent run off, ensuring un interrupted mist application.
• Low operating pressure.
• Avg. droplet size 130 microns.
• Throw diameters up to 2.2 mtrs.
• Available from 10 to 40 LPH. (Flow rates at 2.5 bar)

Applications

• Nurseries
• Green - houses
• Other Agricultural and Industrial applications requiring Environment Management.
• Increasing humidity & lowering temperature in greenhouses.

FLF Fogger Low Flow

• Designed with a vortex nozzle which provides a turbulent flow, minimizing clogging hazards.
• Available as single fogger with integral anti-leak mini-valve or four foggers assembled on a cross.
• Easy to disassemble for maintenance purposes.
• Nozzle size : 0.8 mm
• Droplet size 70-100 microns.
• Emission rate at 3.0 bar : 5/10 LPH.
• Pressure Range: 2.5 - 3.5 bar.
• Two inlet modes : barbed inlet fits 4/7 - 5/8 mm tubes or male conicalinlet.

Applications

• Orchards
• Perennial Plantations
• Nurseries
• Home Gardens
• Climate Control in greenhouses and poultry houses.

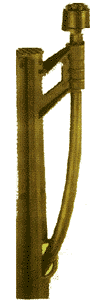

Tornado Ray Jet

Non Clogging Static Sprayer

• No moving parts
• Unique vortex Mechanism allows flow of water through large water passage to prevent clogging.
• Ray Jet pattern distribution.
• Available in 360°, 300° and 180°.
• Made of Superior durable plastic for long life.
• Available from 25 to 64 LPH. (Flow rates at 1.5 bar)
• Throw diameters: 2.8, 3.5, 4.0, 4.6 m at 1.5 bar.

Applications

• Orchards
• Perennial Plantations
• Nurseries
• Home Gardens

J.F.R. & JET +

Ray Jet Sprayer, Integral Anti-Ant Device

• No Moving parts
• Available in flow rates 40,50,75,100 LPH at 2 bar.
• Integral anti-ant device.
• Range limiter available for young plants.
• Long, low angle jet streams.
• Available in variety of distribution patterns
• 3/8" threaded and conical connections.
• Working pressure range: 0.5 to 3.5 bar.
• Can be converted into pressure compensated sprayer (JFRJET+) with regular nozzle.

Applications

• Orchards
• Perennial Plantations
• Nurseries
• Home Gardens

Rondo Mini Sprinkler

Medium range Mini Sprinkler

• Moderate Irrigation flow rate preventing run-off in heavy soils.
• moderate to wide wetting range, suiting the growth of the trees.
• Even distribution of water at spacing upto 7.5 X 7.5 m.
• Easy assembly and dis- assembly.
• Spinners for different applications
• Anti-Ant device prevents clogging caused by insects.
• Available from 50 to 300 LPH at 2 bar.

Applications

• Orchards
• Frost Protection
• Nurseries
• Green Houses
• General field crops like groundnuts, onion, vegetables.

Rondo XL Midi Sprinkle

• Rondo XL's unique operation is acheved by a petented speed regulator device (SRD). This device causes the Spinner to rotate slowly, resulting in large diameter wetting pattern.
• Rondo XL produces a single continuos, long jet of water which is charactrised by an excellent wetting pattern and distribution uniformity.
• Wetting diameter upto 15 m. thus allowing wide spacing.
• Interchangeable model combinations.
• Can be assembled with pressure regulator.
• Simple assembly and operation.
• No Maintenance.
• Available in 135,170,210,260,305,375 LPH at 2.0 bar.

Applications

• Orchards
• Frost Protection
• Nurseries
• Green Houses
• General field crops like groundnuts, onion, vegetables.
